USE | STAIRWELLS
1. Unit will swivel 360°
2. Provides stairwell movements up and down.
1. Unit will swivel 360°
2. Provides stairwell movements up and down.

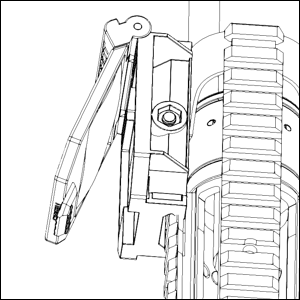

USE | CORNERING
1. Unit will open to 135°
2. Provides cornering and rear assessment.
1. Unit will open to 135°
2. Provides cornering and rear assessment.
HINDSight™ | INSTALLATION AND USER INSTRUCTIONS

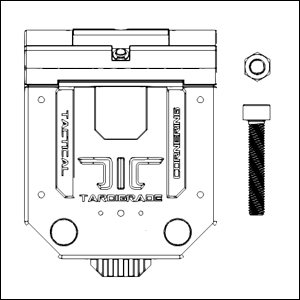

CONTENTS
(A) (1) HINDSight
(B) (1) 5mm Hex Nut
(C) (1) 5x30mm Hex Bolt
(A) (1) HINDSight
(B) (1) 5mm Hex Nut
(C) (1) 5x30mm Hex Bolt

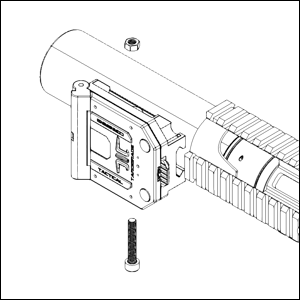

STEP 1
1. Remove hex nut and bolt from unit.
2. Slide HINDSight onto rail preference left or right depending on shooting hand.
1. Remove hex nut and bolt from unit.
2. Slide HINDSight onto rail preference left or right depending on shooting hand.

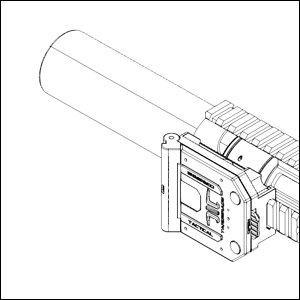

STEP 2
1. Insert and tighten provided hex nut and bolt.
2. Correct fit by aligning bolt path rail slot.
1. Insert and tighten provided hex nut and bolt.
2. Correct fit by aligning bolt path rail slot.
INSTALLATION VIDEO
USE VIDEO
The TARDIGRADE LOGO and word marks are registered trademarks owned by Tardigrade Industries LLC, DBA Tardigrade Optics, Inc.
A
B
C
4
5
6
7
8
9
10
11
MOUNTING OPTION #2 (ALTERNATE)
Attach the unit to the non dominant side of the shooter. A right handed shooter will place the HINDSight on the left side and vice-versa.
The unit is shipped with a protective layer on the mirror. Peel this layer off prior to use.
The unit is shipped with a protective layer on the mirror. Peel this layer off prior to use.
USE | OPENING
1. Unit is held by magnetic closure.
2. Push the open tab outward.
1. Unit is held by magnetic closure.
2. Push the open tab outward.

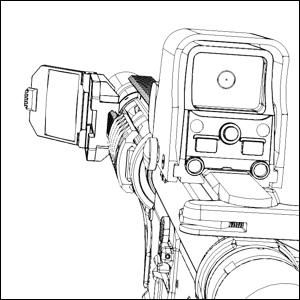

USE | CORNERING
1. Unit will open to 135°
2. Swivel LEFT | RIGHT to check angle.
1. Unit will open to 135°
2. Swivel LEFT | RIGHT to check angle.

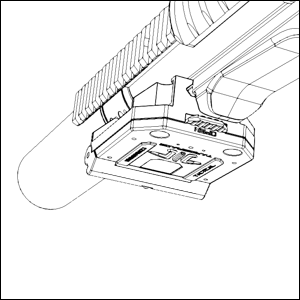

MOUNTING OPTION #1 (PREFERRED)
Attach the unit to the bottom of the picatinny rail.
1
2
3

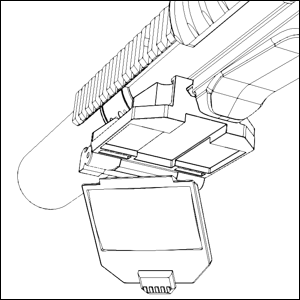

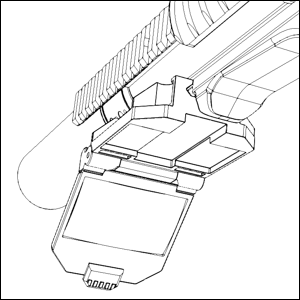

USE | OPENING
1. Unit is held by magnetic closure.
2. Push the open tab outward.
1. Unit is held by magnetic closure.
2. Push the open tab outward.
STEP 1
1. Slide HINDSight into desired position on bottom of the picatinny rail.
2. Insert provided hex nut and bolt.
1. Slide HINDSight into desired position on bottom of the picatinny rail.
2. Insert provided hex nut and bolt.
